The Original since 1982

Condensate Drain

Reliable, energy saving and efficient Robust and versatile Quality made in Germany

Inquire now
Reliable since 1982

The electronically level-controlled condensate drain

Where there is compressed air, there is condensate. It usually contains oil, is contaminated with dirt particles and spreads throughout the compressed air network. The removal of condensate is therefore one of the key purposes of compressed air treatment. We help you to remove condensate from the compressed air and to achieve the optimum quality for your application: with the BEKOMAT. And we are the specialists – as the millions of BEKOMAT condensate drains are in operation worldwide demonstrate. BEKOMAT the first electronically level-controlled condensate drain and a synonym for expert condensate drainage.

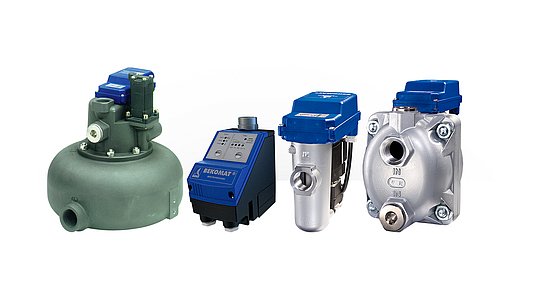

Overview of the series

Our condensate drain range

BEKOMAT 12 | 13 | 14 | 16

The industry standard for reliable condensate drainage. The standard version is made of corrosion-resistant aluminum, making BEKOMAT particularly reliable and robust. A special silver-colored coating protects the outside of the housing. For oil-free condensate, we recommend the BEKOMAT Hardcoat model, which has a high-quality hard coating housing with a glass bead blast finish.

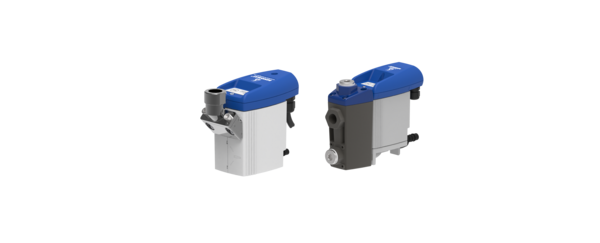

BEKOMAT 31U | 32U | 33U | 33U CO

When generating and processing compressed air, it is necessary to achieve the optimal quality for the application. It is important to remove contaminants and moisture from compressed air.
This is because they can lead to quality issues, breakdowns, and reduced production.

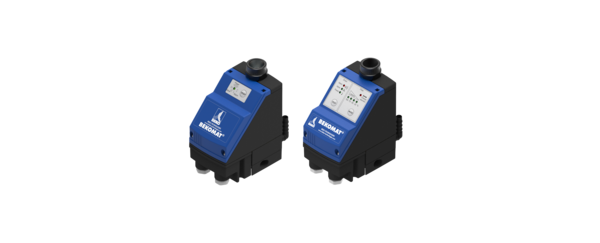

BEKOMAT 20 | 20FM

The BEKOMAT 20 FM, which integrates filter management (filter status display and filter status management) functions, is a cost-effective monitoring solution for connected filter elements. It is designed as a robust condensate drain for water separators, filters or similar applications and can be used in both oil-lubricated and oil-free compressor systems.


BEKOMAT 03 | 06 | 08 | 09 | 15 | 16

Our wide range of condensate drainers covers almost all compressor types and performance levels, system pressures and operating conditions. Of course, we also cater for highly specialized applications that require special BEKOMAT versions. The BEKOMAT series for special solutions offers a wide range of additional functions for a wide range of industries. Our special solutions include versions for vacuum, low pressure, high pressure, no load, ATEX and


BEKOMAT 32iU | 33iU | 12i | 13i | 14i | 16i

The BEKOMAT i4.0 series is a product that meets the expectations of IIoT-compatible systems. It is network-compatible, remotely monitored, flexible, and most of all, it is a product that looks to the future.

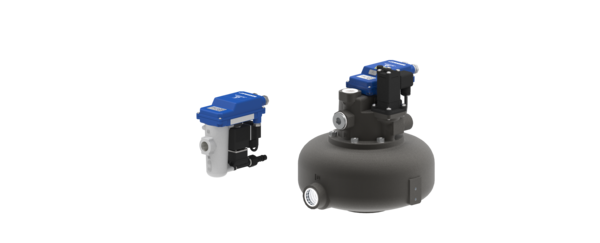

BEKOMAT 12 | 13 | 14 | 16

Industry standard for highly reliable condensate drainage

The standard version is made of corrosion-resistant aluminum, and BEKOMAT® is particularly reliable and robust. A special silver coating protects the outside of the housing. For oil-free condensate, we recommend the BEKOMAT® Hardcoat model, which has a high-quality hard-coated housing with a glass bead blast finish.

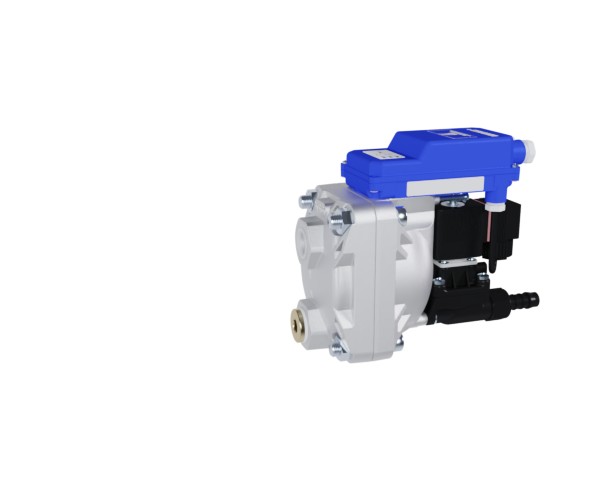

BEKOMAT 31U | 32U | 33U | 33U CO

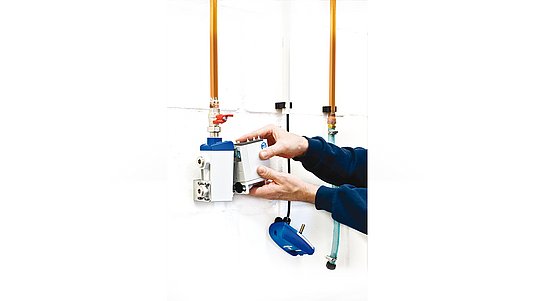

BEKOMAT® enables fast and cost-effective maintenance

BEKOMAT is designed to enable fast and cost-effective maintenance. The innovative design of theBEKOMAT 31U, 32U, 33U and 33U CO models has been optimized for easy handling, installation and maintenance. These BEKOMAT versions consist of three or fewer components connected by quick-release connectors. After installation, the electronic control unit and sensor unit are fixed in place, and only the service unit (including wear and pressure parts) needs to be replaced. This robust condensate drain is suitable for both oil-containing and oil-free condensate.

BEKOMAT 20 | 20FM

Equipped with a filter management function (filter status display and filter status management), the BEKOMAT 20 FM is a cost-effective monitoring solution for connected filter elements. It is designed as a robust condensate drain for water separators, filters or similar applications and can be used in systems with oil-lubricated as well as oil-free compressors. The BEKOMAT 20 FM has a plastic housing with an integrated aluminium condensate container. The front panel is angled to allow good visibility of the BEKOMAT and/or filter status. You can also choose a BEKOMAT 20 without filter management for the water separator.

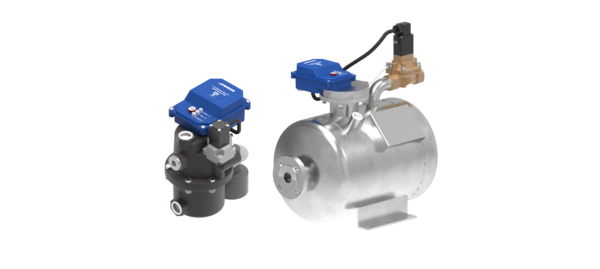

BEKOMAT 03 | 06 | 08 | 09 | 15 | 16

BEKOMAT® Wastewater systems for special and extreme applications

The requirements for condensate drainage are ultimately determined by the application of the treated compressed air. We aim to provide the best solution for your specific application. Our wide range of condensate drainage equipment covers virtually all compressor types and performance levels, system pressures and operating conditions. This includes, of course, highly specialized applications that require special BEKOMAT versions.

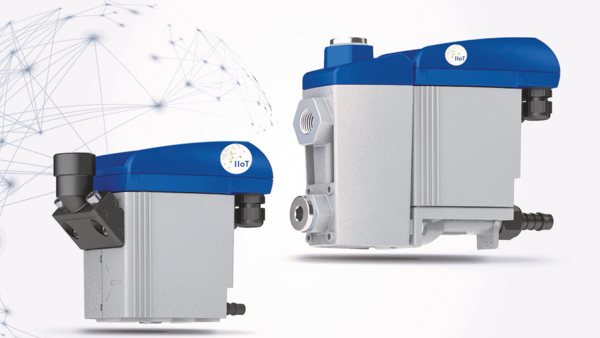

BEKOMAT 32iU | 33iU | 12i | 13i | 14i | 16i

Reliability of digitized processes - more than just basic monitoring

The BEKOMAT i4.0 product range meets the expectations placed on IIoT-compatible systems: network compatibility, remote monitoring, flexibility and, above all, a forward-looking design.

Important information such as the current status or the time remaining until the next service can be conveniently transmitted to a central control center. This improves process reliability and allows maintenance to be planned even more individually.

The right BEKOMAT for your application

Selection of standard BEKOMAT versions

Filter BEKOMAT-Version

Pressure in bars

or

Volume in m³/min

63 bar(A) max.50 bar(A) max.40 bar(A) max.25 bar(A) max.16 bar(A) max.Max. pressure0,8/1,2 bar(A) max.BM12*BM13*BM14*BM16COBM33UBM32UBM20BM31U2,5 m³/min4 m³/min5 m³/min10 m³/min6,5 m³/min30 m³/min130 m³/minUp to 1400 m³/minStandard aluminum housing only up to 16 bar*Up to 16 bar optionally also as CO hard-coated> 16 bar always COWith check valve on requestFlow rate

The climate affects the amount of condensate produced. For an optimum design, we therefore recommend that the respective climate zones are considered during selection. The performance data for the blue zone (Central and Southern Europe, Central America) are shown here.

Video

How does the condensate drain work?

The BEKOMAT® is an electronically level-controlled condensate drain used for draining off condensate in compressed air systems. The condensate formed is collected in the BEKOMAT® and the filling level is monitored by an integrated capacitive sensor. When the defined filling level is reached, the condensate is discharged via a pilot-controlled solenoid valve. When the defined filling level is reached, only the condensate is automatically discharged without losing valuable compressed air.

The revolutionary BEKOMAT

Good reasons for the BEKOMAT condensate drain

Economical

Condensate drain without pressure loss

Benefits
If a float drain leaks, then high costs arise as a result of leaks. Time-controlled solenoid valves also cause compressed air losses. During the valve opening, expensively generated compressed unused compressed air escapes into the environment. In contrast a level-controlled condensate drain guarantees discharge without any compressed air loss i.e. also energy loss. This not only saves energy and costs, but also CO2 emissions.

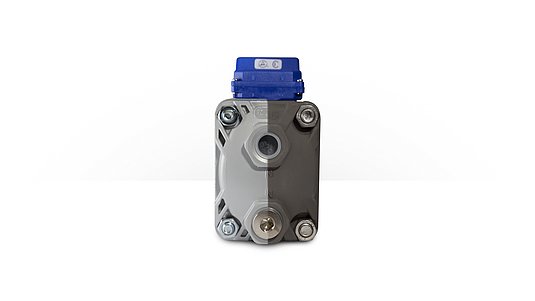

Robust

The standard design is made in corrosion-resistant aluminium, which makes the BEKOMAT particularly reliable and robust. A silver-coloured coating protects the outside of the housing. The BEKOMAT CO models are predestined for operating with oil-free or aggressive condensates. Their housing is additionally, completely glass bead blasted and protected by a high-quality hard coating.

Quick

Condensate drains with service concept – quick and service-friendly

The innovative design of the BEKOMAT 31U, 32U, 33U and 33U CO  series enables simplified handling as well as installation and maintenance with minimum time expenditure. The BEKOMAT consist of no more than three units joined together with quick-release connectors. The electronic control and sensor units are only installed once, only the service unit (including all wear and pressure parts) needs to be exchanged for maintenance purposes. This robust condensate drain is suitable for both oil-contaminated and oil-free, condensates.

Special

Condensate drains for special requirements

Based on our decades of experience, we have developed and implemented numerous additional functions for special requirements for our customers in a wide variety of industries, following on from on the classic advantages of the BEKOMAT. These have proved themselves in a wide variety of application areas - you can also now benefit from our unique know-how.

Condensation occurs everywhere

Where is your BEKOMAT condensate drain located?

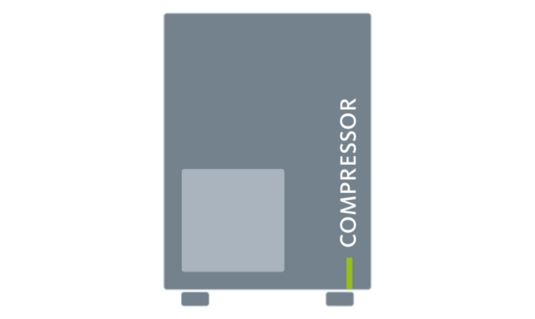

Compressor

Oil-free compressors often produce very acidic condensates. Hard-coated BEKOMAT condensate drains have a special coating and are ideally suited for this purpose.

BEKOMAT solutions are also available for multi-stage compressors and turbo compressors, also for special requirements according to your installation.

Aftercooler/ Water separator

The highest condensate volume is generated at the water-separator. The level-controlled BEKOMAT condensate drain reliably ensures safe discharge according to the condensate level.

Our extensive range offers you the right solution for a wide variety of condensate volumes and pressures - and even for explosion-proof environments if required.

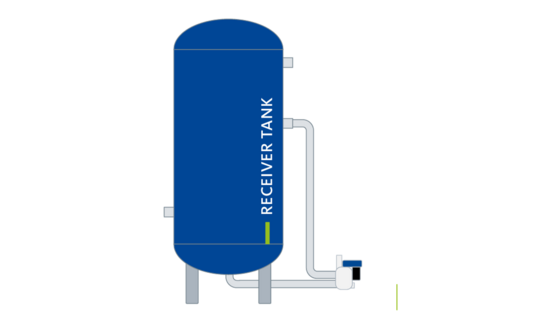

Storage tank

Large particles in the form of rust, for example, are present in air vessels. No problem for our BEKOMAT condensate drain: thanks to its large outlet cross-section, it is particularly insensitive to dirt and hardly susceptible to blockages.

And if something prevents the BEKOMAT from draining, it tries to self-clear itself before an alarm is triggered.

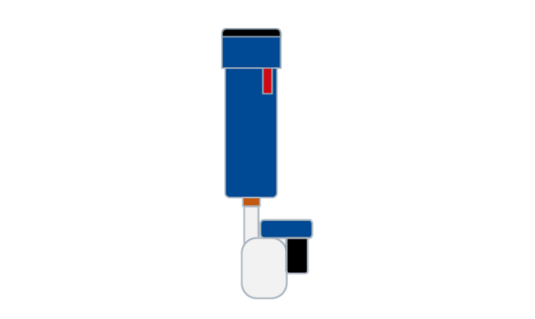

Filters

Condensate builds up in systems in a short period of time which can cause a variety of problems including poor system efficiency, corrosion as well as excessive wear and tear on surrounding equipment.

Our BEKOMAT Filter-Management drains and other larger BEKOMAT versions are available for the safe and reliable draining of condensate from your filters.

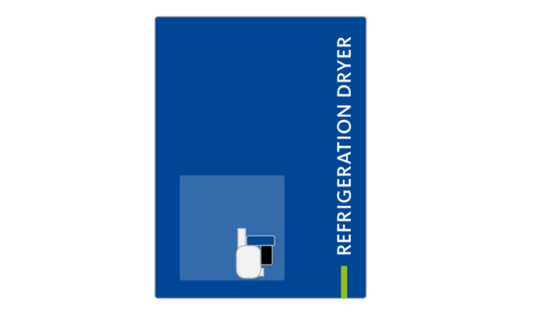

Dryer

Only a small amount of condensate should reach the refrigeration dryer, but condensate still accumulates in the aftercoolers.

A correctly sized BEKOMAT condensate drain at each collection point, reliably and safely discharges the condensate.

Comparison of products

Compare models

Technical data
Max. compressor performance
Max. dryer performance
Max. filter performance
Housing
Min./max. operating pressure
Operating temperature
Condensate inlet
Condensate discharge
Condensate type
Ø Discharge capacity at 7 bar(g)
BEKOMAT 31U
2,5 m³/min
5 m³/min
25 m³/min
Aluminium + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +70 °C
1 x G½ (inside)
1 x G¼; hose connector
oil-contaminated condensate, oil-free condensate
0,63 l/h
BEKOMAT 32U
5 m³/min
10 m³/min
50 m³/min
Aluminium + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +70 °C
1 x G½ (inside)
1 x G¼; hose connector
oil-contaminated condensate, oil-free condensate
1,14 l/h
BEKOMAT 33U
10 m³/min
20 m³/min
100 m³/min
Aluminium, hard-coated + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +70 °C
3 x G½ (inside)
1 x G½; hose connector
oil-contaminated condensate
3,8 l/h
BEKOMAT 33U CO
10 m³/min
20 m³/min
100 m³/min
Aluminium, hard-coated + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +70 °C
3 x G½ (inside)
1 x G½; hose connector
oil-contaminated condensate, oil-free condensate
3,8 l/h
BEKOMAT 12
6,5 m³/min
13 m³/min
65 m³/min
Aluminium
0,8 ... 16 bar (g)
+1 °C … +60 °C
1 x G½ (inside)
1 x G⅜ (outside); hose connector
oil-contaminated condensate
1,43 l/h
BEKOMAT 12 CO
6,5 m³/min
13 m³/min
65 m³/min
Aluminium, hard-coated
0,8 ... 16 bar (g)
+1 °C … +60 °C
1 x G½ (inside)
1 x G⅜ (outside); hose connector
oil-contaminated condensate, oil-free condensate
1,43 l/h
BEKOMAT 12 CO PN63
6,5 m³/min
13 m³/min
65 m³/min
Aluminium, hard-coated
1,2 ... 63 bar (g)
+1 °C … +60 °C
1 x G½ (inside)
1 x G⅜ (inside); without hose connector
oil-contaminated condensate, oil-free condensate
1,43 l/h
BEKOMAT 13
30 m³/min
60 m³/min
300 m³/min
Aluminium
0,8 ... 16 bar (g)
+1 °C … +60 °C
2 x G½ (inside)
1 x G½ (outside); hose connector
oil-contaminated condensate
7,61 l/h
BEKOMAT 13 CO
30 m³/min
60 m³/min
300 m³/min
Aluminium, hard-coated
0,8 ... 16 bar (g)
+1 °C … +60 °C
2 x G½ (inside)
1 x G½ (outside); hose connector
oil-contaminated condensate, oil-free condensate
7,61 l/h
BEKOMAT 13 CO PN25
30 m³/min
60 m³/min
300 m³/min
Aluminium, hard-coated
1,2 ... 25 bar (g)
+1 °C … +60 °C
2 x G½ (inside)
1 x G⅜ (inside); without hose connector
oil-contaminated condensate, oil-free condensate
7,61 l/h
BEKOMAT 13 CO PN40
30 m³/min
60 m³/min
300 m³/min
Aluminium, hard-coated
1,2 ... 40 bar (g)
+1 °C … +60 °C
2 x G½ (inside)
1 x G⅜ (inside); without hose connector
oil-contaminated condensate, oil-free condensate
7,61 l/h
BEKOMAT 13 CO PN50
30 m³/min
60 m³/min
300 m³/min
Aluminium, hard-coated
1,2 ... 50 bar (g)
+1 °C … +60 °C
2 x G½ (inside)
1 x G⅜ (inside); without hose connector
oil-contaminated condensate, oil-free condensate
7,61 l/h
BEKOMAT 14
130 m³/min
260 m³/min
1300 m³/min
Aluminium
0,8 ... 16 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (outside); hose connector
oil-contaminated condensate
33,33 l/h
BEKOMAT 14 CO
130 m³/min
260 m³/min
1300 m³/min
Aluminium, hard-coated
0,8 ... 16 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (outside); hose connector
oil-contaminated condensate, oil-free condensate
33,33 l/h
BEKOMAT 14 CO PN25
130 m³/min
260 m³/min
1300 m³/min
Aluminium, hard-coated
1,2 ... 25 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G⅜ (inside); without hose connector
oil-contaminated condensate, oil-free condensate
33,33 l/h
BEKOMAT 16 CO
1400 m³/min
2800 m³/min
--
Aluminium, hard-coated
0,8 ... 16 bar (g)
+1 °C … +60 °C
2 x G¾ (inside), 1 x G1 (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
274 l/h
BEKOMAT 20
4 m³/min
8 m³/min
40 m³/min
Aluminium + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +60 °C
1 x G¾ (outside) - G½ (inside)
1 x G¼; hose connector
oil-contaminated condensate, oil-free condensate
1,03 l/h
BEKOMAT 20 FM
4 m³/min
8 m³/min
40 m³/min
Aluminium + plastic, glass fibre reinforced
0,8 ... 16 bar (g)
+1 °C … +60 °C
1 x G¾ (outside) - G½ (inside)
1 x G¼; hose connector
oil-contaminated condensate, oil-free condensate
1,03 l/h
BEKOMAT 03 E PN25
100 m³/min
200 m³/min
--
Stainless steel (1.4581)
2 ... 25 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (inside)
oil-contaminated, oil-free & aggressive condensate
56 l/h
BEKOMAT 03 E PN63
100 m³/min
200 m³/min
--
Stainless steel (1.4581)
2 ... 63 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (inside)
oil-contaminated, oil-free & aggressive condensate
56 l/h
BEKOMAT 03 CO LA
100 m³/min
200 m³/min
--
Aluminium, hard-coated
0 … 1,2 / 1,2 ... 25 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
49 l/h
BEKOMAT 03 CO LALP
100 m³/min
200 m³/min
--
Aluminium, hard-coated
0 … 0,4 / 0,4 ... 16 bar (g)
+1 °C … +60 °C
3 x G¾ (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
27,3 l/h
BEKOMAT 06 E PN25
1000 m³/min
2000 m³/min
--
Stainless steel (1.4581)
2 ... 25 bar (g)
+1 °C … +60 °C
2 x G¾ (inside), 1 x G1 (inside)
1 x G½ (inside)
oil-contaminated, oil-free & aggressive condensate
228 l/h
BEKOMAT 06 CO LA
1000 m³/min
2000 m³/min
--
Aluminium, hard-coated
0 … 1,2 / 1,2 ... 16 bar (g)
+1 °C … +60 °C
2 x G¾ (inside), 1 x G1 (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
251 l/h
BEKOMAT 06 CO LALP
1000 m³/min
2000 m³/min
--
Aluminium, hard-coated
0 … 0,4 / 0,4 ... 16 bar (g)
+1 °C … +60 °C
2 x G¾ (inside), 1 x G1 (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
129 l/h
BEKOMAT 15 CO VACU
100 m³/min
200 m³/min
--
Aluminium, hard-coated
0,1 ... 0,8 bar (abs)
+1 °C … +60 °C
1 x G¾ (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
42 l/h
BEKOMAT 16 CO VACU
1000 m³/min
2000 m³/min
--
Aluminium, hard-coated
0,1 ... 0,8 bar (abs)
+1 °C … +60 °C
1 x G¾ (inside)
1 x G½ (inside)
oil-contaminated condensate, oil-free condensate
194 l/h
BEKOMAT 08
9.360 - 14.400 m³/min
--
--
Stainless steel (1.4541)
0,5 ... 10 bar (g)
+1 °C … +60 °C
"Flange 2"; C50 X 60,3; DIN 1092-1
1 x G1 (inside)
oil-contaminated, oil-free & aggressive condensate
1505 l/h
BEKOMAT 09
24.000 - 30.000 m³/min
--
--
Stainless steel (1.4541)
0,5 ... 4 (g)
+1 °C … +60 °C
"Flange 2"; C50 X 60,3; DIN 1092-1"
1 x G1 (inside)
oil-contaminated, oil-free & aggressive condensate
3425 l/h
The BEKOMAT is everywhere

Applications of condensate technology

Metalworking industry Compressed air dryers Compressed air filters

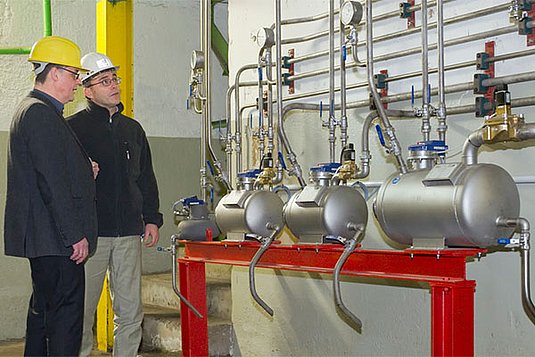

Condensate technology for turbo compressors
